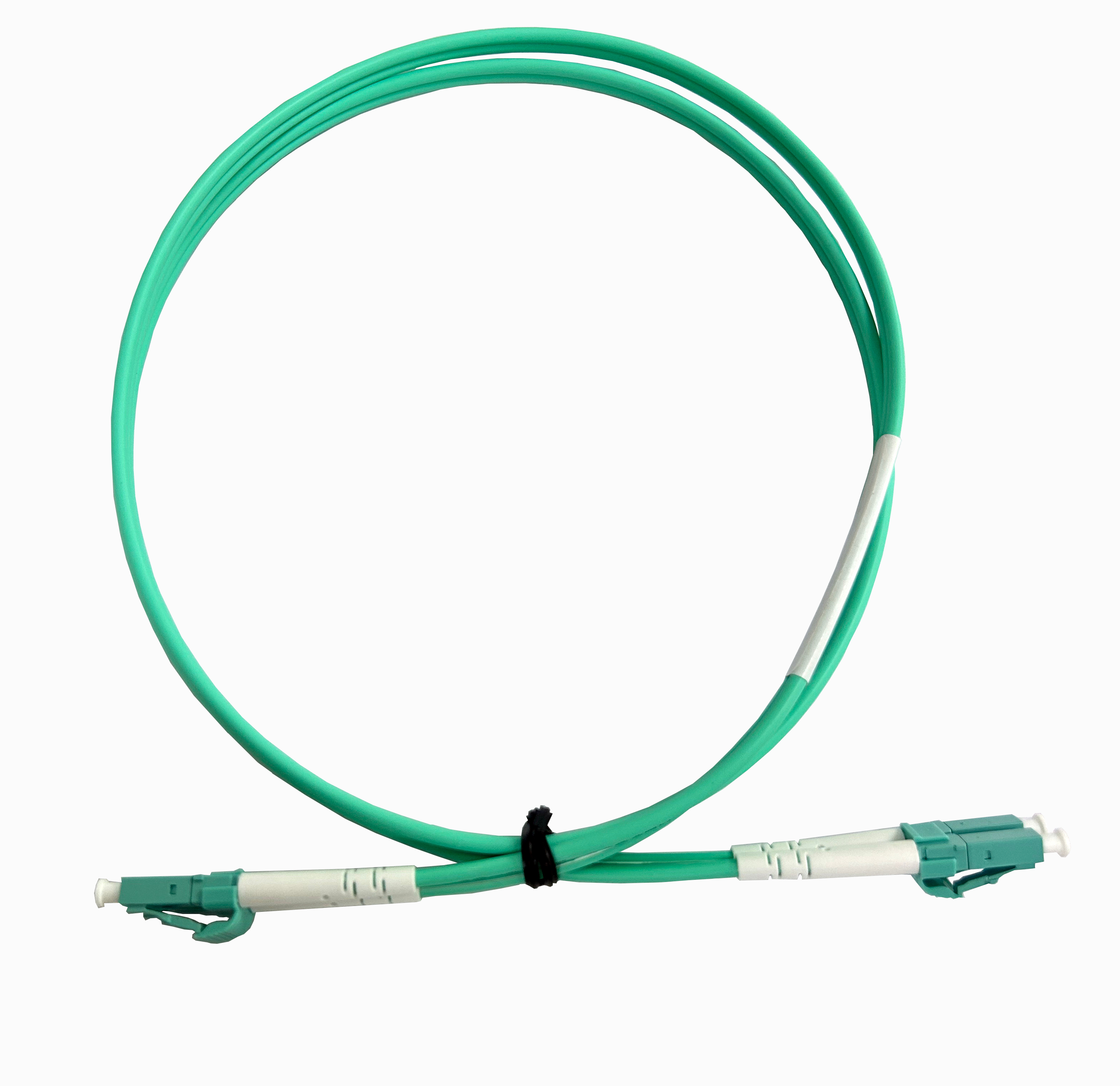

LC/UPC Duplex to LC/UPC Duplex Patch Cable, MMF, OM4
$3.24
Quantity :
Add to Wishlist
Ask a question
Product Details
1. General Overview
This high-quality OM4 multimode fiber optic patch cable features LC/UPC connectors on both ends. It is designed for high-speed data transmission in data centers and enterprise networks, supporting 10G, 40G, and 100G Ethernet applications with low insertion loss and high reliability.
2. Technical Specifications
| Connector A / B | LC Duplex to LC Duplex |
| Polish Type | UPC (Ultra Physical Contact) |
| Fiber Type | Multimode OM4 50/125μm |
| Fiber Count | Duplex (2-Fibers) |
| Wavelength | 850nm / 1300nm |
| Max. Insertion Loss | ≤ 0.25 dB (Typical: 0.15 dB) |
| Min. Return Loss | ≥ 35 dB |
| Effective Modal Bandwidth | 4700 MHz·km @ 850nm |
3. Physical & Mechanical Properties
| Cable Jacket Diameter | 2.0mm / 3.0mm (Standard 2.0mm) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) / OFNP (Plenum) |
| Jacket Color | Erika Violet (Aqua optional) |
| Operating Temperature | -20°C to +70°C |
| Minimum Bend Radius | Static: 10D / Dynamic: 20D |
4. Features & Key Benefits
• High Bandwidth: Laser-optimized OM4 fiber supports 40G/100G up to 150m.
• Precision Ceramic Ferrules: High-quality zirconia ferrules ensure stable alignment and low loss.
• SFF Design: Small Form Factor (LC) doubles the density compared to SC connectors.
• Standard Compliance: Fully compliant with TIA-604 (FOCIS), IEC 61754, and RoHS requirements.
• Factory Tested: 100% optically tested for insertion loss to ensure high performance.
5. Applications
• 10G, 40G, and 100G Ethernet Connectivity
• Data Center Infrastructure and Storage Area Networks (SAN)
• Fiber-to-the-Desk (FTTD) and Enterprise LAN
• High-Performance Computing (HPC) Clusters
