1. Product Overview

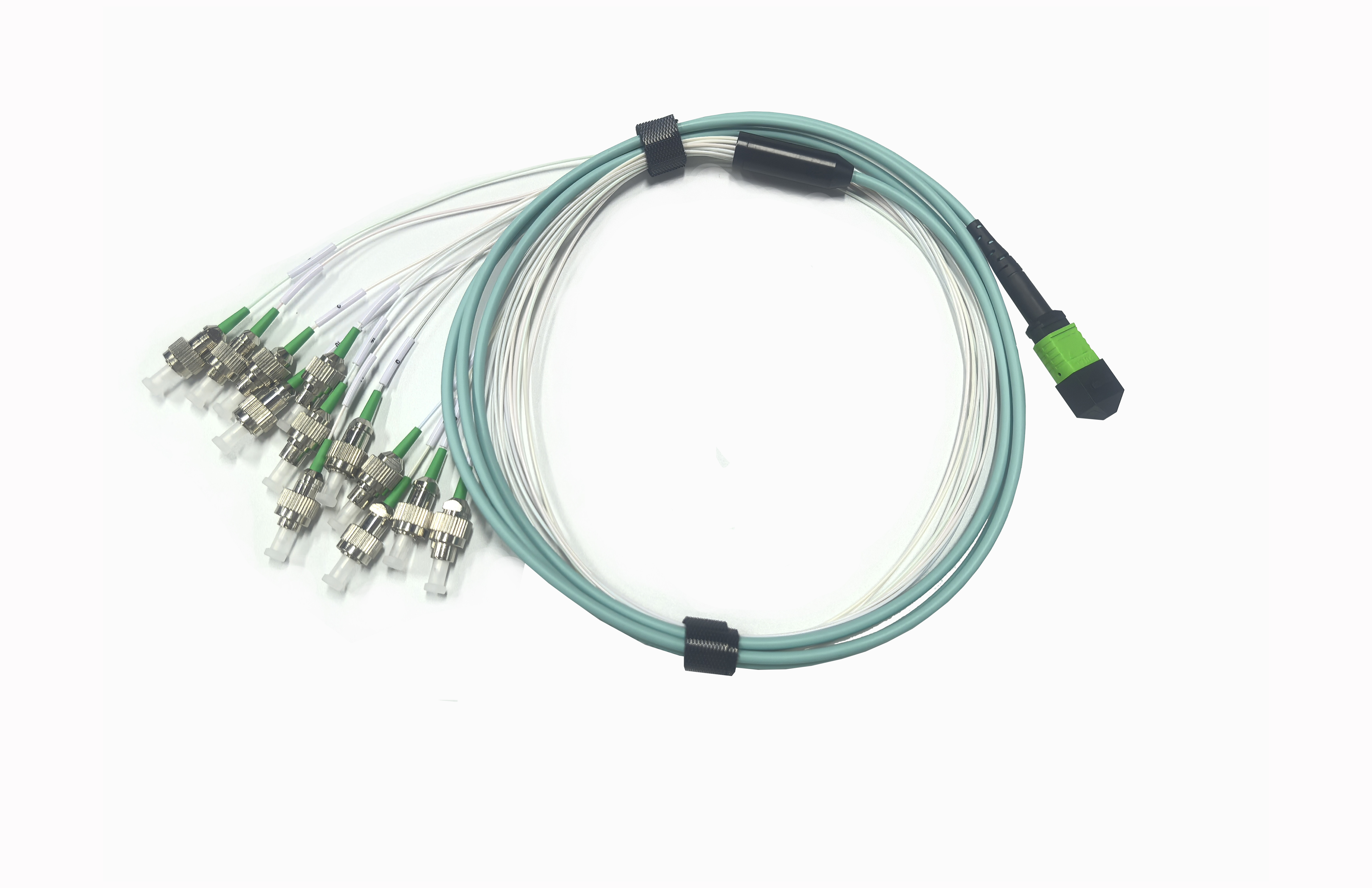

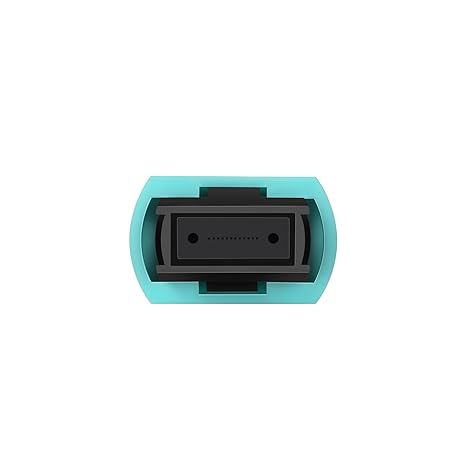

The MPO/MTP-12 to 12 x FC/APC OM3/OM4 Breakout Cable (also known as a Harness or Fan-out) facilitates the transition from a single 12-fiber MPO connector to twelve discrete FC/APC simplex connectors. Utilizing Aqua LSZH jacketed multimode fiber, this cable is engineered for high-bandwidth data transmission where secure, threaded connections are required to prevent accidental disconnects in high-vibration or industrial environments.

2. General Specifications

3. Optical Performance

4. Mechanical & Environmental Characteristics

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -40°C to +85°C

• Threaded Coupling: FC connectors feature a threaded nut for secure mating.

• Minimum Bend Radius: 7.5mm (Bend-Insensitive MMF)

• Durability: >500 mating cycles

Product Applications

The MPO-to-12xFC/APC breakout cable is a strategic component for specific high-performance and industrial networking scenarios:

1. High-Stability Industrial Environments

The FC connector is designed with a threaded coupling mechanism that provides a much more secure connection than the snap-in LC or SC styles. This breakout cable is ideal for industrial plants or transportation hubs where machinery vibration could potentially loosen standard connectors.

2. Specialized Test and Measurement Labs

In laboratory settings, FC/APC connectors are frequently used for their high repeatability and stability. This harness allows a multi-channel MPO-based light source or switch to be distributed to 12 individual FC-input test instruments, ensuring a consistent and secure optical path.

3. Legacy Equipment Integration

While LC is the modern standard, many legacy telecommunications and medical imaging systems still utilize the FC interface. This cable allows for the modernization of the backbone (moving to MPO/MTP) while maintaining compatibility with existing FC-port equipment.

4. Advanced Sensor Networks & Fiber Optic Sensing

In fiber optic sensing applications that use multimode fiber, the APC (Angled Physical Contact) polish on the FC connectors is critical. The 8-degree angle minimizes back-reflection, which can interfere with sensitive sensor measurements or cause instabilities in certain high-speed laser sources.

5. High-Density ODF Distribution

For Optical Distribution Frames (ODF) that were originally built for FC connectors, this cable allows for a "Plug-and-Play" upgrade. You can run 12 fibers through the rack using a single MPO trunk and fan them out directly to the FC adapters on the patch panel, significantly reducing installation time and clutter.

Professional Recommendation:

Because FC/APC (Angled) is distinct from FC/UPC (Flat), always ensure that the mating equipment or adapters are also green-coded (APC) to avoid high insertion loss or damage to the fiber end-faces. High-performance MPO-12 to 12x FC/APC breakout cable. Threaded secure connections with APC polish for industrial, medical, and lab environments. MPO to FC breakout, MTP to FC/APC fanout, 12-fiber FC/APC cable, multimode FC harness, Aqua LSZH fiber, industrial fiber optic cable, FC/APC vs LC.
